Model | SCL-102 |
Induction operating frequency | 125 KHz or 13.56MHz |
Applicable card | T5557,EM4305 Card ,M1 Card |
Voltage | Four sections of 1.5V alkaline batteries |
Alarm Voltage | < 4.8 V |
Static power consumption | < 10 microamps |
Dynamic power consumption | < 200 microamps |
Temperature | -20 °C to 50 °C |
Humidity | < 95 °C |
Antistatic | > 15.000 V |
FREE English software, smart software system efficiently manage whole hotel. |
FREE sample, over 1000pcs ! |
Anti- rust and anti-corrosion(Stainless steel/Zina alloy/Brass material optional). |
Famous brand chips--Atmel or Philips,sufficiently stable, lock can use for 20 years. |
ANSI standard 5 latches lock body ensure security, anti-strike. |
Data collector can download lock records, eg. when,who use which key open lock. |
4pcs AA batteries can use about 10-12 months. |
Working clock is setted inside locks to control the effective time limit of card keys. eg. if set check out time 11:00AM, pass 11:00AM, guest card can not open door lock |
Two unlock ways: RFID card or mechanical key (Master mechanical key optional. |

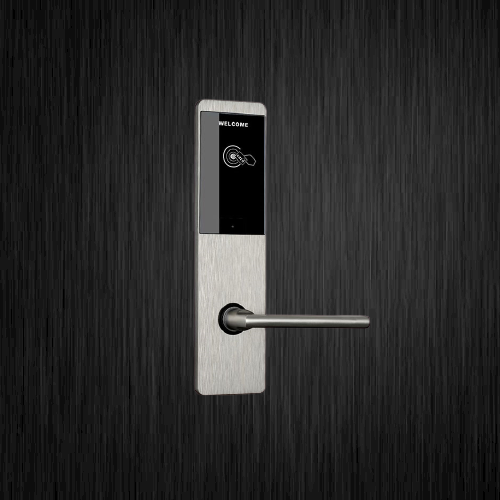

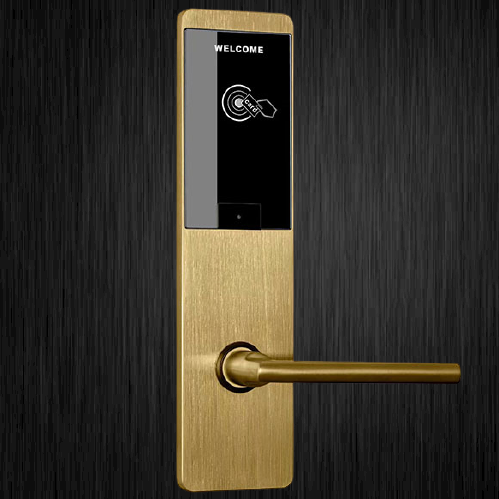

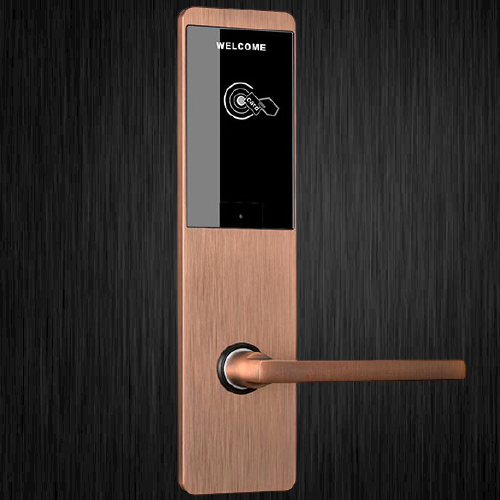

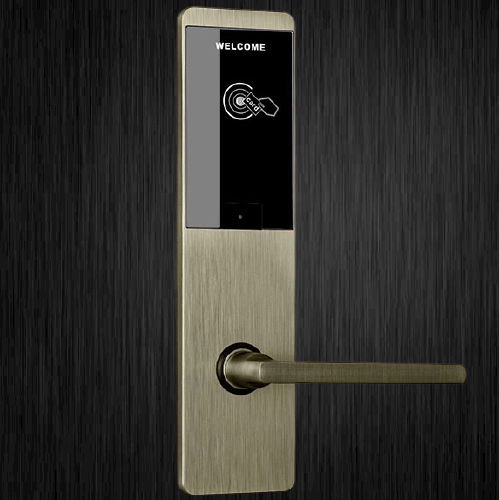

Lock (qty = guest room)---installed in doors. |
Encoder (qty=1-2pcs/hotel ) ---For issuing/ program all cards to be unlock key. |
Energy-saving Switch (qty = guest room)---To control power,saving power. |
Cards (qty = 3-5 times of guest room)-----be programmed to be the key by encoder. |
Data collector (1pc/hotel, Optional)---Download unlock records(Who/When open) from lock. |
Self developed software,English language(free)----For control and management the whole system. |
For other language sofware, you can translate it to be your language. |
